Cable tray and cable ladder for projects across Indonesia.
Ladder, perforated tray and wire mesh, down to fittings and bolts, in one quotation. Choose a hot-dip galvanized, electro-galvanized or powder-coated finish. We ship from Bekasi to project sites across Indonesia.
- 01 / 04
Hundreds of cables, dozens of types, all competing for the same ceiling space.
- 02 / 04
The main route starts at the MDP: an 800 mm heavy-duty cable ladder for the heaviest power cables.
- 03 / 04
Every branch uses the right type: ladder for power, perforated tray for control, wire mesh for fiber.
- 04 / 04
One quotation for the whole network, from ladder to bolts.
For investors, EPC contractors and plant owners
A local supply partner for cable support in Indonesia.
Short answer
Ponggawa (PT Ponggawa Perkasa) supplies cable ladder, cable tray, cable duct, raceway and wire mesh tray, with the fittings, supports and bolts to install them, for projects across Indonesia. The products are made from 1.8 to 2.0 mm SPHC steel to a NEMA VE 1 design by an ISO 9001:2015 certified partner manufacturer in Bekasi, east of Jakarta. Send a BOQ or layout drawings and you receive one itemised quotation that includes delivery to your site.
- 01
One quotation, ladder to bolts
Straight lengths, fittings, supports, hold-down clamps and bolts are counted together from your BOQ or layout, so procurement handles one document for the whole cable support package.
- 02
A specification you can check on delivery
Every quotation states the plate thickness, finish and reference standard of each item, so your QA/QC team can check the goods against it when they arrive on site.
- 03
Supplied inside Indonesia
Shipped from Bekasi by truck across Java and into Sumatra, and by sea freight or container to Batam, Kalimantan and Sulawesi. Bundled and labelled by size, and split into deliveries that follow your construction phases.
- 04
Itemised pricing, no minimum order
Prices are quoted per component, with Indonesian VAT (PPN) and delivery to site shown separately. Small orders are served too, so top-up items late in the project are quoted the same way.

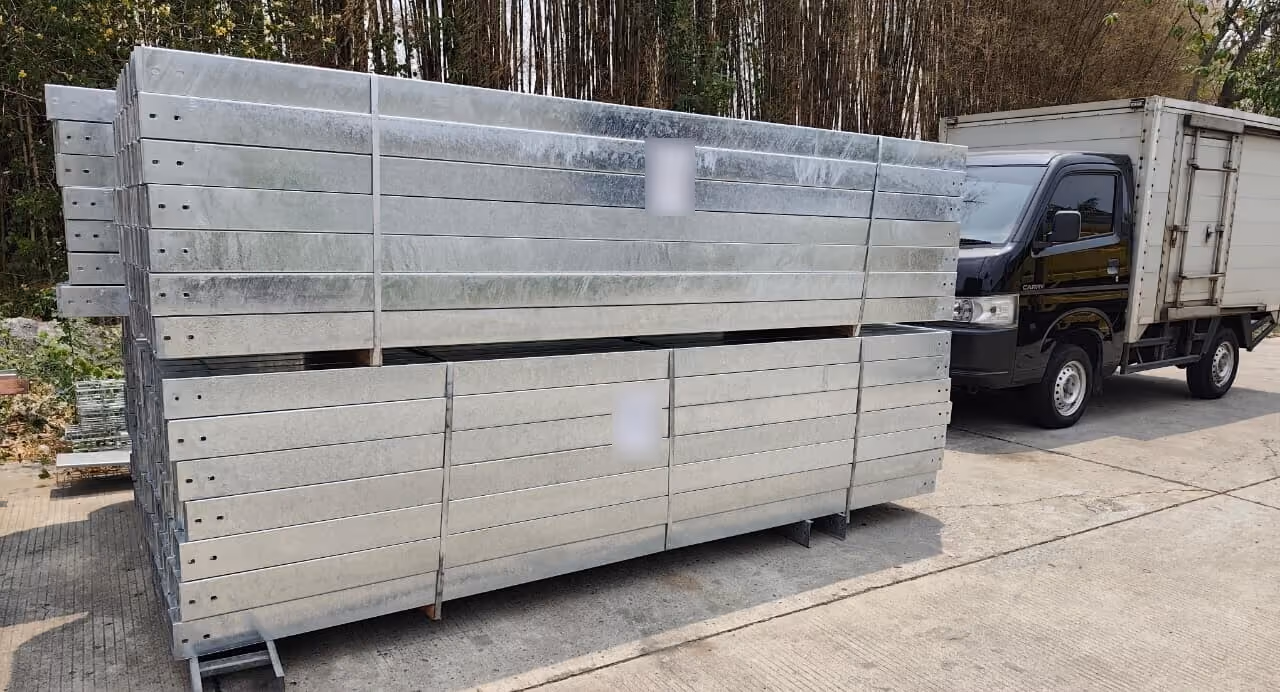

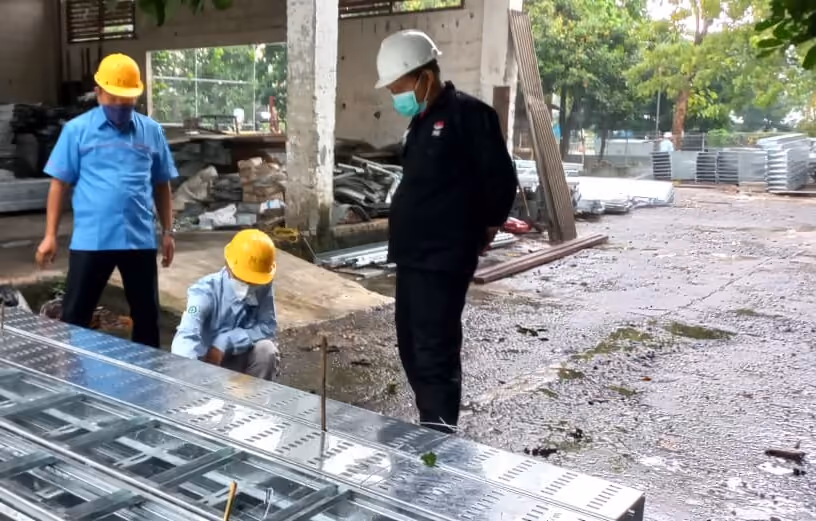

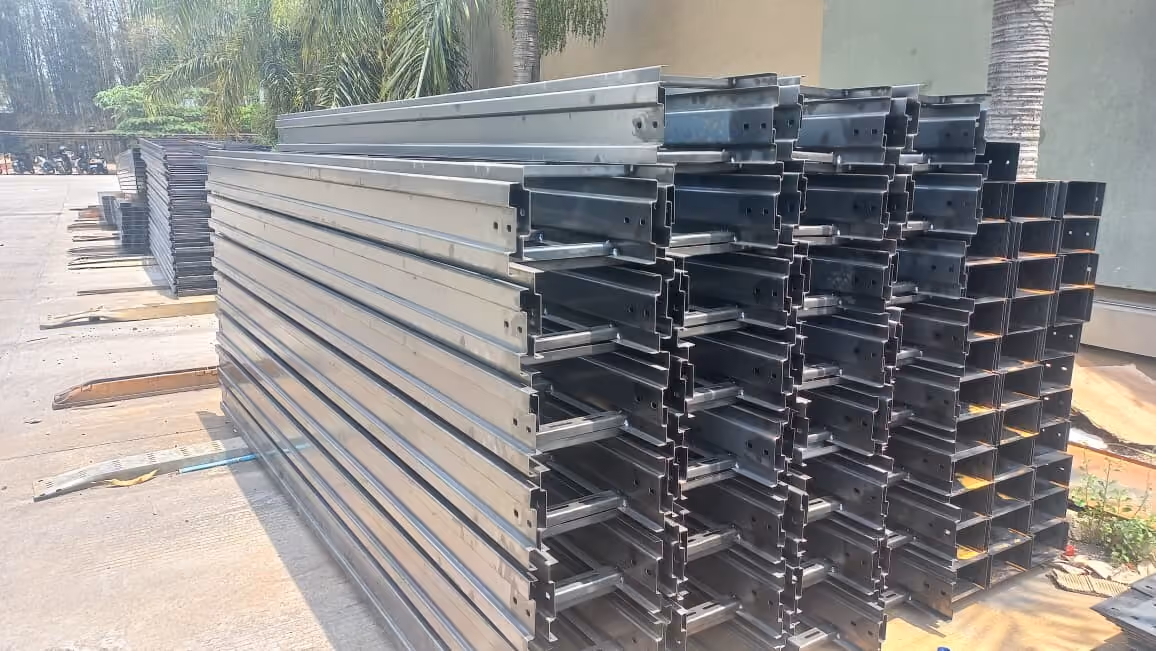

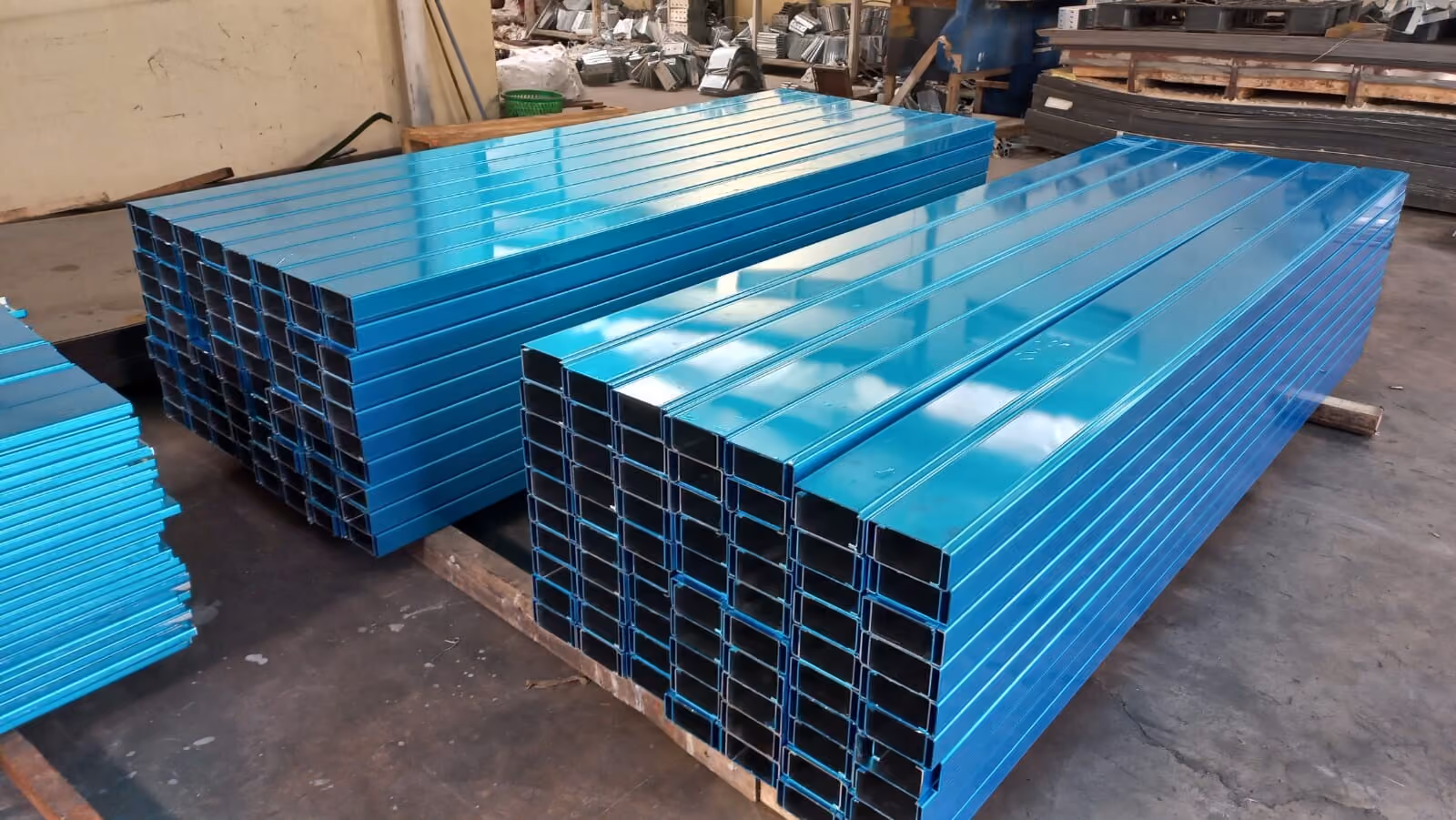

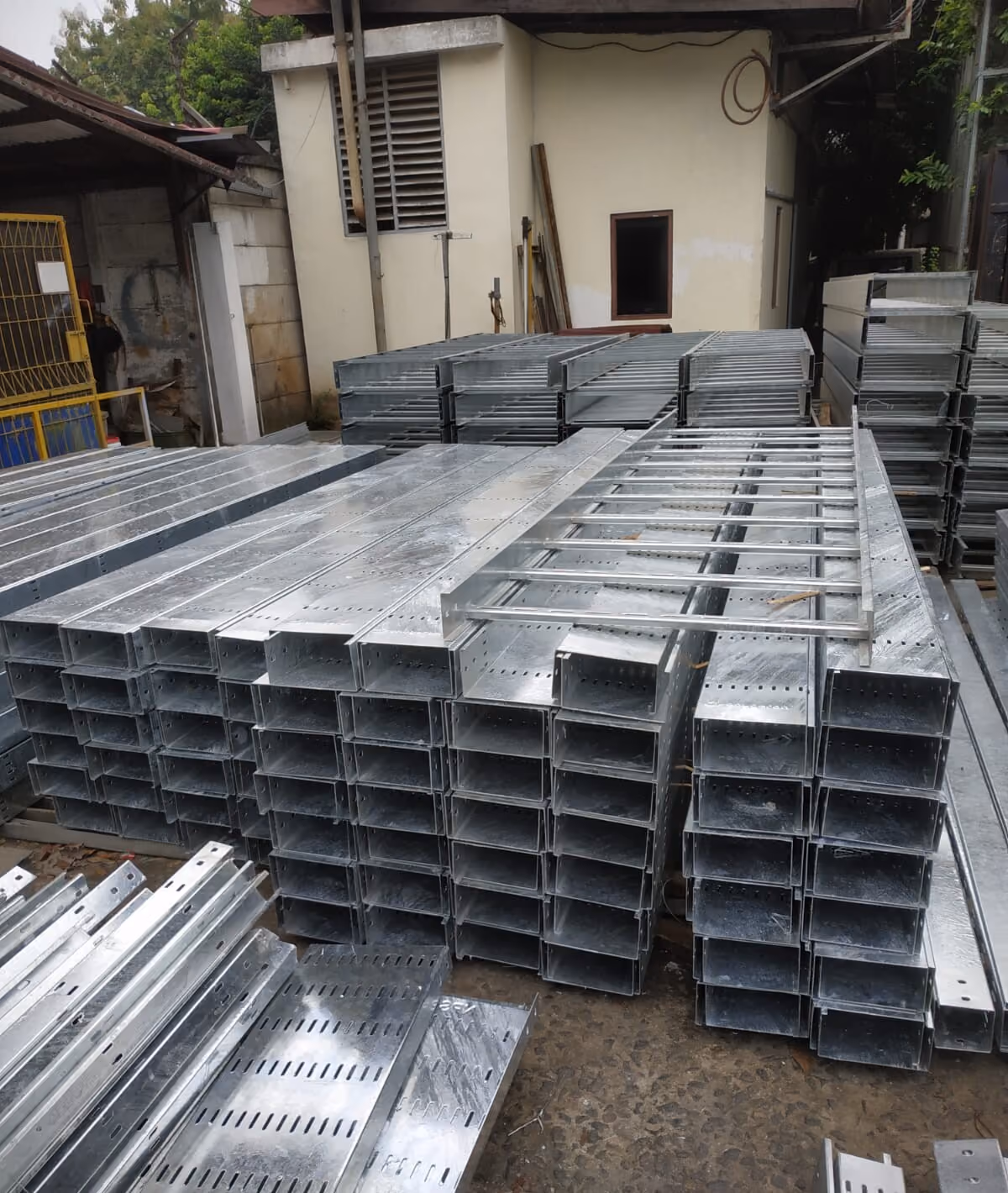

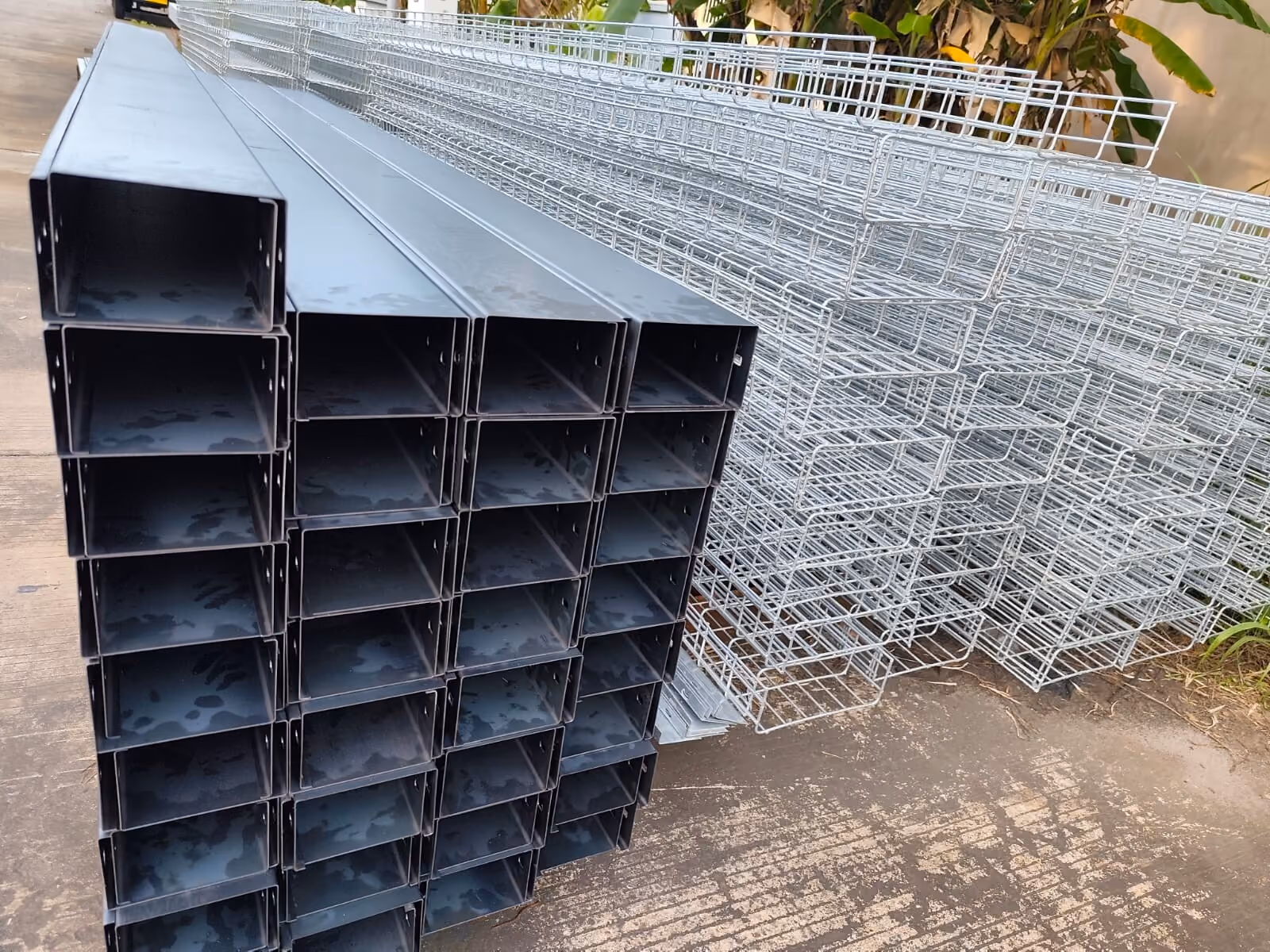

Stock and loading photos from Bekasi.
Taken as the goods are bundled, checked and loaded onto trucks for project sites.
- ISO 9001:2015
- Our partner manufacturer holds ISO 9001:2015 quality management system certification.
- 360 kg @ 2.5 m
- Independent laboratory load test: type W ladder 1,000 x 100, 2.0 mm thick, 10 mm deflection, NEMA VE 1 class 10A.
- HDG BS 729
- Hot-dip galvanized after fabrication, so cut edges and holes are coated too.
- 1.8 to 2.0 mm
- Hot-rolled SPHC steel sheet. The thickness is stated on every quotation.
Ladder, tray, duct, raceway, wire mesh and every accessory.
Ladder, tray and duct share the same joint hole pattern (10 x 14 mm slots). Fittings, join sets and supports for every height can be ordered together in one quotation.
- 01
Cable Ladder
Two side rails joined by a rung every 300 mm. For large power cables, long support spans and main routes in buildings and plants.
- 02
Cable Tray
Perforated steel tray with a full base. For control and instrument cables and small to medium power cables.
- 03
Cable Duct
Closed, unperforated trough with a cover. Protects cables from dust, water splashes and impact.
- 04
Raceway
Small covered channel for lighting, socket outlet, control and instrument cables.
- 05
Wire Mesh Cable Tray
Welded steel wire basket. Light, and can be cut and bent on site. Used for data and fiber cables.
- 06
Accessories & Supports
Every installation component in one order: covers, joints, hanging and wall supports, down to the bolts.
Which project are you building?
Power, control and fiber cables are separated from the MDP onward, so routes are easy to audit and there is room left as racks are added.
- Power
- Cable ladder type W, 600 to 1,000
- Control
- Perforated cable tray type C, 300 to 400
- Fiber
- Wire mesh tray, 200 to 300
- Finish
- Powder coating in the route color, or electro-galvanized
Routes on open pipe racks face heat, dust and sea air, and the supports are usually far apart.
- Main route
- Heavy-duty cable ladder, 127 or 152
- Distribution
- Cable ladder type U, 300 to 600
- Finish
- HDG, with HDG bolts and hangers
- Extra
- Top cover on routes exposed to the sun
Ceiling voids are tight and routes turn often. Cables rise through shafts, and fire alarm routes must be kept separate.
- Distribution
- Perforated cable tray type U, 100 to 400
- Shafts
- Inside and outside risers, covers
- Fire alarm
- Red powder-coated tray
- Finish
- Electro-galvanized for indoor areas
Heavy medium-voltage cables run from the transformers to the switchgear, often through outdoor areas.
- MV cables
- Cable ladder type W or heavy-duty, 600 to 1,000
- Separation
- Straight separators between power and control
- Finish
- HDG
- Supports
- Hanger beams and brackets sized to the span
Specification
Standards your engineers already work with.
Figures from the product data and the partner manufacturer's documents. Your quotation states the plate thickness, finish and reference standard for each item.
- Design reference
- NEMA VE 1, for cable tray and cable ladder
- Load test
- Independent laboratory, type W ladder 1,000 x 100, 2.0 mm, 2.5 m span: 360 kg at the 10 mm deflection limit (span/250, NEMA VE 1 class 10A). The sample carried up to 550 kg per span.
- Material
- Hot-rolled sheet steel (SPHC), 1.8 to 2.0 mm; other thicknesses to order
- Finish
- Hot-dip galvanized after fabrication (BS 729, DIN 50976), electro-galvanized, powder coating in RAL colors
- Standard length
- 3,000 mm per length
- Joint holes
- 10 x 14 mm slots, 25 and 50 mm from the end, the same pattern on ladder, tray and duct
- Sizes
- Width 100 to 1,200 mm; side height 50, 100, 127 and 152 mm
- Quality system
- ISO 9001:2015, held by the partner manufacturer
Is your project specification written to IEC 61537 or an owner standard? Attach it to your RFQ. The products are designed to NEMA VE 1, and the quotation states the reference standard for every item, so your engineer can check it against the specification before the PO.
Send your specificationSend us your BOQ and we will prepare the quotation.
- 01
Send your requirements
A BOQ, layout drawings, site photos, or simply a list of sizes.
- 02
Receive a complete quotation
Straight sections, fittings, supports, clamps and bolts in one document, with the delivery cost.
- 03
Delivered to your site
Bundled by size and shipped from Bekasi to match your project schedule.
Fast replies during business hours · Monday to Friday 08:00 to 17:00, Saturday 08:00 to 13:00 (WIB, UTC+7)
Chat on WhatsApp nowOr fill in the short form
Once it is sent, you can continue straight to WhatsApp to share your BOQ file.
Not sure which width you need? Send the cable schedule with diameters and quantities, and our team works out the tray or ladder size.
Width calculator (in Bahasa Indonesia)Delivered from Bekasi to your site.
Estimates for stock sizes after the PO is confirmed. Custom sizes and powder coating follow the production schedule.
Greater Jakarta (Jabodetabek)
1 to 2 working days
Bekasi & Cikarang · Jakarta · Karawang · Tangerang · Bogor & Depok
Industrial estatesJababeka, MM2100, EJIP, GIIC Deltamas, KIIC, Suryacipta, Millennium Industrial Estate
Rest of Java
1 to 4 working days
Surabaya & Gresik · Serang & Cilegon · Semarang & Kendal · Bandung
Industrial estatesJIIPE Gresik, Krakatau Industrial Estate Cilegon, Modern Cikande, Kendal SEZ (KEK Kendal), Batang Integrated Industrial Estate
Outside Java
4 to 21 days, by land or sea
Batam · Balikpapan & IKN (Nusantara) · Morowali & Sulawesi · Medan · Palembang
Industrial estatesBatamindo, Kabil, Nongsa Digital Park, Kariangau, IMIP Morowali, IWIP Weda Bay, Sei Mangkei SEZ
What procurement teams ask before ordering.
Ask us directlyHow do I get a price for cable tray in Indonesia?
Prices depend on size, type, plate thickness, finish and volume, so they are quoted per project. Send sizes and quantities or your BOQ by WhatsApp or the form, and we reply with a complete quotation including fittings, supports and delivery to site.
How quickly will I receive a quotation?
Messages received during business hours (WIB, UTC+7) are answered the same day. A quotation is ready fastest when you include sizes, type, finish, quantities and the project location, or simply send the BOQ file.
Is Ponggawa the manufacturer?
Ponggawa is a supplier. The products are made by a partner manufacturer in Bekasi that holds ISO 9001:2015 certification and an independent laboratory load test report referencing NEMA VE 1. We handle the quotation, production coordination, visual quality control and delivery to your site.
Which standards do the products follow?
Cable tray and cable ladder are designed to NEMA VE 1, and hot-dip galvanizing follows BS 729 and DIN 50976. If your specification refers to IEC 61537 or an owner standard, attach it to the RFQ: the quotation states the reference standard, plate thickness and finish for each item.
Which finish should we specify for a coastal site or a smelter?
Hot-dip galvanized, with HDG bolts as well. Electro-galvanized coating is too thin for salt air and is meant for dry indoor areas. Powder coating is used where a route needs a color, such as fire alarm or data center routes.
Do you deliver outside Java, for example to Morowali, Batam or Kalimantan?
Yes. Outside Java we ship by sea freight or container to the site; ask for the delivery schedule when you request the quotation. For container shipments, for example to Morowali, we prepare a packing list per bundle, which makes receiving at the site warehouse easier.
Is there a minimum order?
No. Small orders are served too; the delivery cost follows volume and distance.
Can you supply custom sizes?
Yes. Width, height, plate thickness, length and powder coating color can be made to your shop drawings. Custom sizes and powder coating follow the production schedule.
